NanoCore® Base-8 and Base-16 Micro Distribution

NanoCore® Micro Distribution cable offers 250um fiber in a loose tube design allowing for a higher fiber strand count in a very small overall diameter cable. Base-8/Base-16 cables have 8 or 16 fibers per sub unit which allow for 100% fiber utilization for parallel optics applications in support of 40GbE, 100GbE, 400GbE, 800GbE, and 1.6TbE. Proterial Cable America is proud to utilize Corning Optical Fiber as our standard fiber

PRODUCT HIGHLIGHTS

RoHS 3 compliant
All multimode, and singlemode cables (except OM1) utilize bend-insensitive optical fibers
250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
Ideal for MPO (MTP®) style connectors
Each fiber is color coded for easy identification
Flexible and easy to handle
Lightweight, flexible Aramid yarns enhance strength
Now available with a smaller outside diameter
When necessary, color-coded binders separate fiber strands into bundles of 8

PRODUCT DETAILS

Manufacturing Location	Manufactured in the USA
Cable Rating	Plenum (UL) OFNP c(UL) OFNP FT6
Glass Construction	Glass core with 125 micron cladding and 250 micron acrylate coating
Overall Jacket	Flame-retardant thermoplastic
Jacket Colors	Aqua , Yellow
Applications	Parallel optics in support of 40GbE, 100GbE, 400GbE, 800GbE, and 1.6TbE
Custom Options	Single unit options available up to 16 Fibers Enhanced bend insensitive OS2 optical fiber available (ITU-T G.657.B3 & G.657.A2) 16 Fiber colors available Erika Violet Jacket OM4+ and OM5 Available
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Installation Temperature	0° to 60°C (32° to 140°F)
Operation Temperature	0° to 70°C (32° to 158°F)

DOWNLOADS & RESOURCES:

Speak with an Expert
To Discuss Your Application Needs

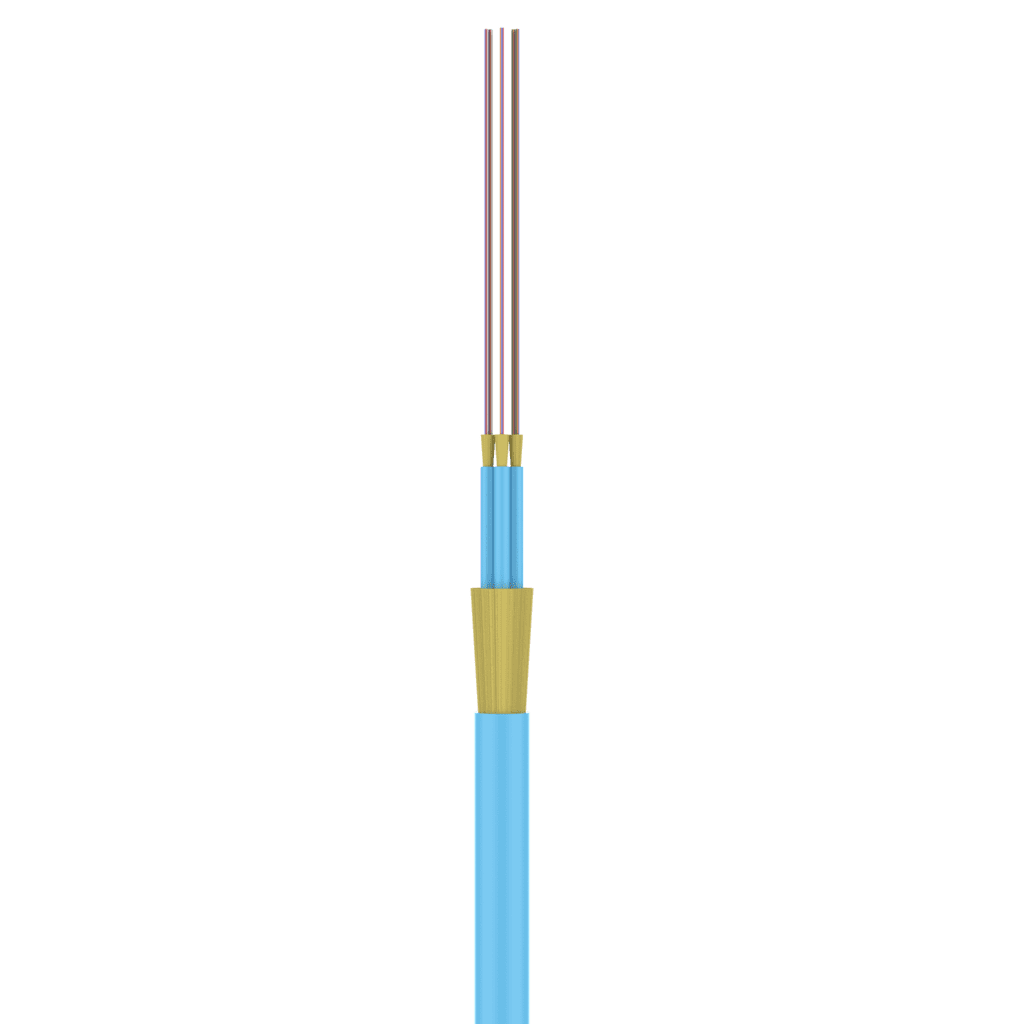

Base-8

50 µm OM4	8.3 µm SM	Fiber Count	#of Subs	# of Fillers	Fibers Per Tube	Nominal Diameter	Weight
62369-16	62365-16	16	2	2	8	0.250	22lbs/1000 ft 33 kg/km
62369-32	62365-32	32	4	0	8	0.250	25lbs/1000 ft 37 kg/km
62369-48	62365-48	48	6	0	8	0.295	35lbs/1000 ft 52 kg/km
62369-64	62365-64	64	8	0	8	0.344	49lbs/1000 ft 72 kg/km
62369-72	62365-72	72	9	0	8	0.367	55lbs/1000 ft 82 kg/km
62369-96	62365-96	96	12	0	8	0.390	52lbs/1000 ft 78 kg/km

Base-16

50 µm OM4	8.3 µm SM	Fiber Count	#of Subs	# of Fillers	Fibers Per Tube	Nominal Diameter	Weight
63048-32	63051-32	32	2	2	16	0.352	39lbs/1000 ft 58 kg/km
63048-64	63051-64	64	4	0	16	0.352	44lbs/1000 ft 66 kg/km
63048-96	63051-96	96	6	0	16	0.410	61lbs/1000 ft 90 kg/km
63048-128	63051-128	128	8	0	16	0.480	88lbs/1000 ft 131 kg/km
63048-192	63051-192	192	12	0	16	0.624	149lbs/1000 ft 222 kg/km
