Specialty Cables

PCA is a trusted provider of cutting-edge copper cable, fiber optic communication cable, electronics cable (both flat and round), and customized cable solutions to meet the global demands of our customers. Our extensive product range serves a diverse array of applications across eight distinct vertical markets.

      Flat Cable | Medical Solutions | Defense Solutions | Transit | Industrial Ethernet

Our unique materials include specialty alloys, ultra-fine wire and cable production, magnetic materials, and batteries. These components play a pivotal role in enhancing the performance and functionality of various products.

Trust PCA to meet your specialized cable and advanced material needs, as we continue to drive innovation and excellence in the industry.

Speak with an Expert
To Discuss Your Application Needs

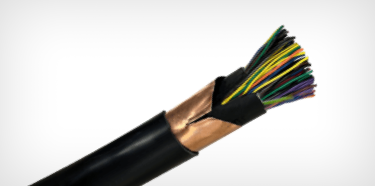

Transit Cable

We manufacture Supervisory and Communication Cables for transit systems.

Listings, Standards & Approvals
  • NYCTA Approved
  • Flame Test UL 1666
  •  NES 711 Issue 2 Smoke Index
  • NES 711 Issue 3 Toxicity Index
  • MIL 24643 Acid Gas
  • MIL 24643 Halogen Content
  • ASTM E 662-06 Smoke Generation (Flaming & Non-Flaming)
  • ASTM D 471-06 Fluid Immersion
Subway train in subway underground

Defense Solutions

Click here for more on PCA’s defense solutions click here

f16 falcon fighter jet on sunset background

Medical Cable Solutions

One of Proterial’s many strengths is building complex fine wire bundles. These are traditionally found in ultrasound imaging environments for medical probe cables in both medical and non-medical applications where precision and performance are paramount.

Proterial offers a broad range of products, capabilities and customized cables that support a wide variety of applications and equipment. Our expertise spans several medical market segments endoscopy, surgical catheter manufacturing & assembly, and cable manufacturing & device assembly. We strive to listen to the needs of our customers and develop the next generation of lifesaving products that our OEMs require.

Check out more information on our Medical Cable Solutions



Flat Ribbon Cables

  • 20027 Standard Pitch Ribbon
  • 23012 Shielded Flat Ribbon
  • 23026 Rainbow Flat Ribbon
  • 23100 Stranded Flat Ribbon
  • 23232 Stranded Flat Ribbon
  • 23224 Wide Pitch Ribbon
Rainbow Flat Ribbon

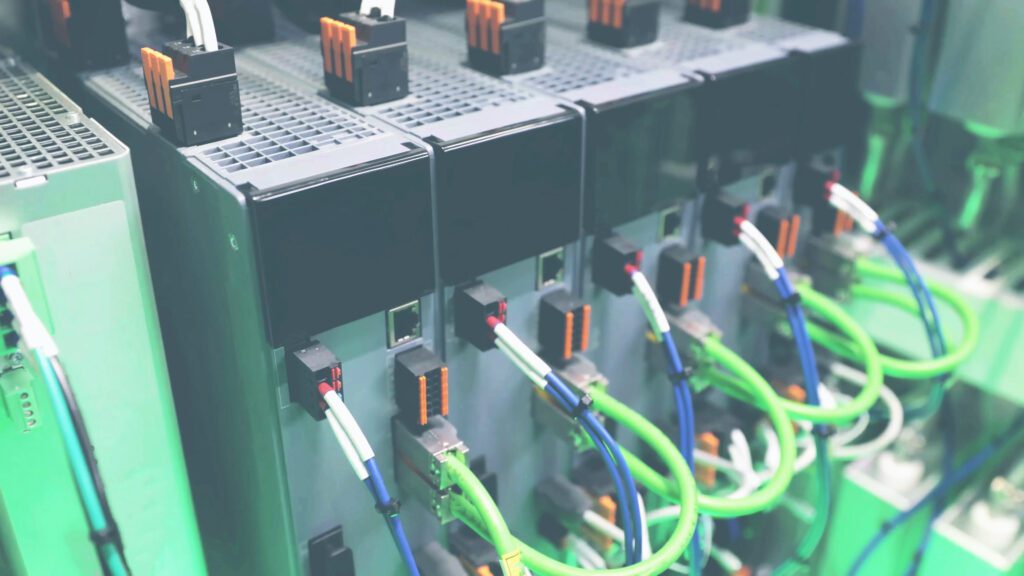

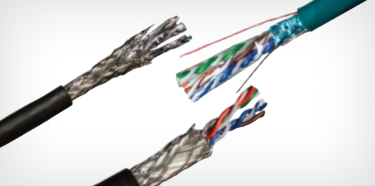

Industrial Ethernet

PVC Jacketed 600 Volt
  • Category 5e, 6 and tray-rated versions
  • PVC 600 volt cables
  • Cables are designed for hard industrial environments and operating conditions that have high noise levels
  • Flexible use
  •  Stationary applications
  • UL approvals, CMX outdoor CMR, CMG, PLTC and AWM

Part NumberDescriptionCategoryColorCablingCable O.D
in (mm)
Weight per
1000 ft. lbs (kg)
41219-008Industrial Ethernet Cable, 600V rated, consisting of
4 pair, 22 AWG, Aluminum / polyester shielded with a
PVC Jacket. (UL) CMX Outdoor CMR, PLTC. AWM 2570 80C 600V
5eTealAluminum/Polvester
+ 24 AWG
(7/32) Tinned copper Drain wire
0.330"
(8.38)
78 Ibs
(34.4 kg)
41493-008Industrial Ethernet Cable, 600V rated, consisting of
4 pair, 22 AWG, Aluminum / polvester shielded with a
PVC Jacket. (UL) CMX Outdoor CMR, PLTC-ER, AWM 2570
5eTealAluminum/Polyester
+ 24 AWG
(7/32)
Tinned copper
Drain wire
0.330"
(8.38)
78 Ibs
(34.4 kg)
30339-008Industrial Ethernet Cable, 600V rated, consisting of
4 pair, 23 AWG, unshieled with a PVC Jacket. (UL) CMR, AWM 2570
6BlueUnshielded0.245"
(6.22)
35 lbs
(15.9 kg)
41488-008Industrial Ethernet Cable, 600V rated, consisting of
4 pair, 23 AWG, unshieled with a PVC Jacket. (UL) CMR, AWM 2570
6BlackAluminum/
Polyester + 24
AWG Solid Bare
copper
0.295"
(7.49)
78 Ibs
(34.4 kg)
41796-008Industrial Ethernet Cable, 600V rated, consisting of
4 pair, 23 AWG, unshieled with a PVC Jacket. (UL) CMR, AWM 2570
5eTealAluminum/Polyester
+ 24 AWG
(7/32)
Tinned copper
Drain wire
0.3403
(8.64)
78 Ibs
(34.4 kg)
