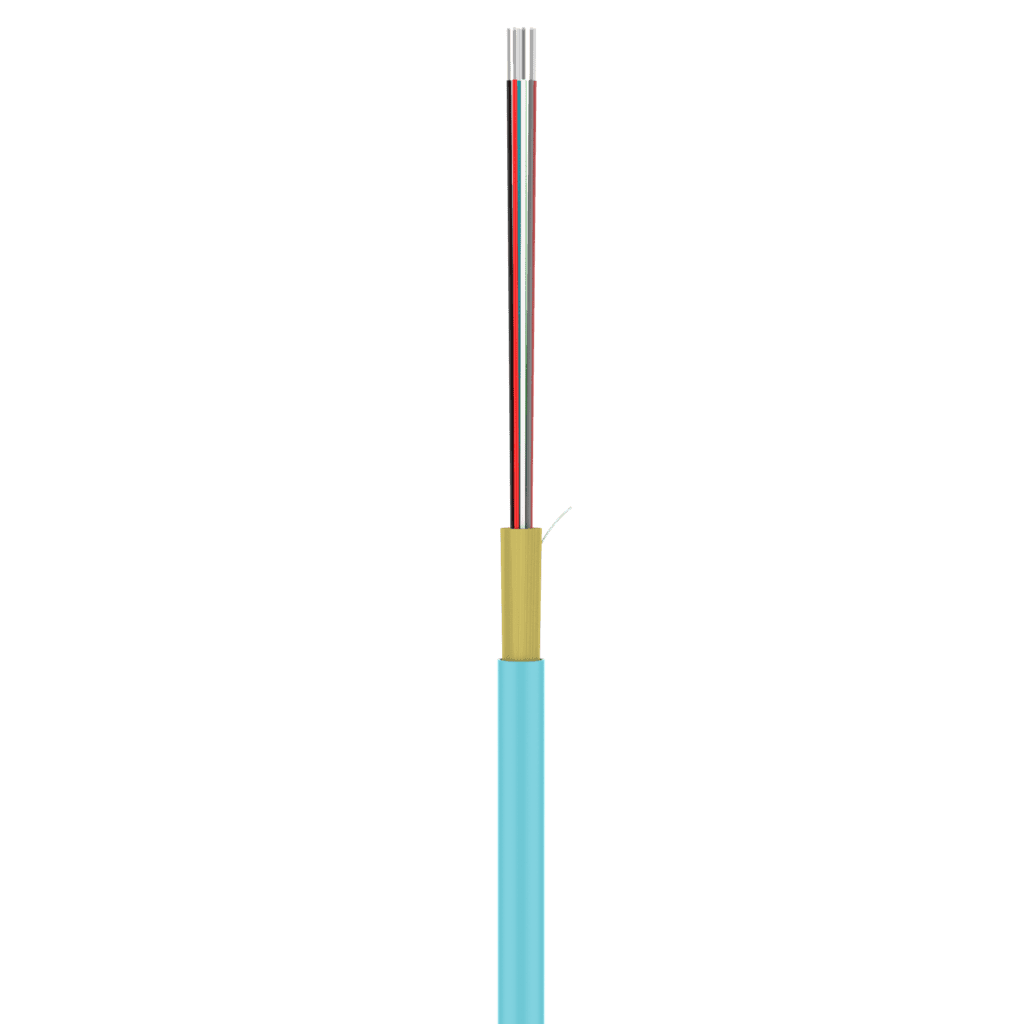

Single-Unit is RoHS 3 compliant and all multimode and singlemode cables (except OM1) utilize bend-insensitive optical fibers. Each fiber is color coded for easy identification, flexible and easy to handle with lightweight aramid yarns to enhance strength. Single-Unit constructions are an ideal intra-building cable solution that will support applications including Gigabit, 10 Gigabit and 40 Gigabit Ethernet. Proterial Cable America is proud to utilize Corning Optical Fiber as our standard optic fiber.
|Manufacturing Location||Manufactured in USA|
|Cable Rating||Plenum (UL) OFNP c(UL) OFNP FT6|
|Glass Construction||Glass core with 125 micron cladding, 250 micron acrylate coating and 900 micron buffer.|
|Overall Jacket||Flame-retardant thermoplastic|
|Jacket Colors||Yellow: OS2
Aqua: OM3 & OM4
|Applications||10, 40 & 100 gigabit Ethernet, Fibre Channel, Video, Security, Automation.
OM5 supports applications utilizing Short Wave Division Multiplexing (SWDM).
|Custom Options||Enhanced bend insensitive OS2 optical fiber is available (ITU-T G.657.B3 & G.657.A2).
OM4+ optical fibers with extended 10 gigabit Ethernet distances are available.
|Storage Temperature||-40°C to +70°C (-40°F to +158°F)|
|Installation Temperature||0° to 60°C (32° to 140°F)|
|Operation Temperature||0° to 70°C (32° to 158°F)|
